IP65 クォーターターン ラッチ ウィズ スプリング

メールアドレス
IP65 Quarter Turn Latches with Spring
IP65 Quarter Turn Latches with Spring
IP65 Quarter Turn Latches with Spring

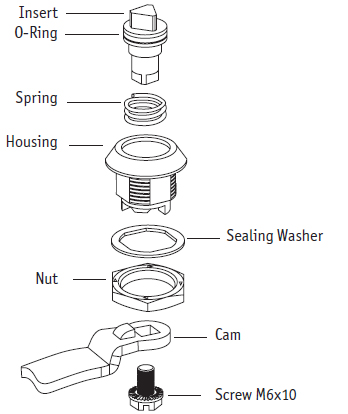

IP65 Quarter Turn latches are supplied in de-cast zinc alloy and it seals perfectly to IP 65. It is ideal to be used on electrical cabinets and enclosures. It is supplied with 6 headstyles and we also supply 7 types of grip ranges.

Applications and Benefits of IP 65 Quarter Turn Latches with Spring

  • It is a perfect quarter turn latch to be applied on electrical cabinets and enclosures.
  • These are provided with 6 headstyles and 7 types of grip ranges which consumers can choose based on their preference.
  • Produced from die-cast zinc alloy.

図面ダウンロードは会員登録・ログインが必要となります。

サンプル パーツ
No

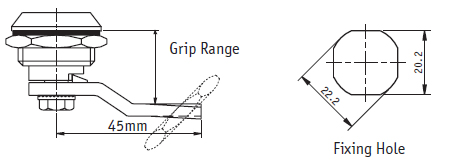

Material Head Size Grip Range <
ユニット
単位
単価 在庫 合計金額 添付

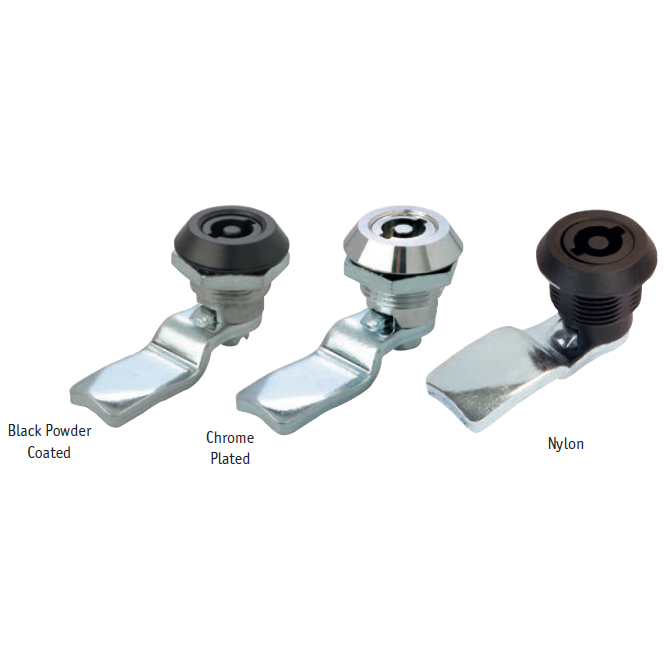

492987 Nylon Housing Slotted 28.5
¥0 Check
492986 Nylon Housing Slotted 26.5
¥0 Check
492985 Nylon Housing Slotted 24.5
¥0 Check
492984 Nylon Housing Slotted 18.5
¥0 Check
492983 Nylon Housing Slotted 14.5
¥0 Check
492982 Nylon Housing Slotted 8.5
¥0 Check
492981 Nylon Housing 8 mm Triangle 28.5
¥0 Check
492980 Nylon Housing 8 mm Triangle 26.5
¥0 Check
492979 Nylon Housing 8 mm Triangle 24.5
¥0 Check
492978 Nylon Housing 8 mm Triangle 18.5
¥0 Check
492977 Nylon Housing 8 mm Triangle 14.5
¥0 Check
492976 Nylon Housing 8 mm Triangle 8.5
¥0 Check
492975 Nylon Housing 8 mm Square 28.5
¥0 Check
492974 Nylon Housing 8 mm Square 26.5
¥0 Check
492973 Nylon Housing 8 mm Square 24.5
¥0 Check
492972 Nylon Housing 8 mm Square 18.5
¥0 Check
492971 Nylon Housing 8 mm Square 14.5
¥0 Check
492970 Nylon Housing 8 mm Square 8.5
¥0 Check
492969 Nylon Housing 5 mm Double Bit 28.5
¥0 Check
492968 Nylon Housing 5 mm Double Bit 26.5
¥0 Check
492967 Nylon Housing 5 mm Double Bit 24.5
¥0 Check
492966 Nylon Housing 5 mm Double Bit 18.5
¥0 Check
492965 Nylon Housing 5 mm Double Bit 14.5
¥0 Check
492964 Nylon Housing 5 mm Double Bit 8.5
¥0 Check
492963 Nylon Housing 3 mm Double Bit 28.5
¥0 Check
492962 Nylon Housing 3 mm Double Bit 26.5
¥0 Check
492961 Nylon Housing 3 mm Double Bit 24.5
¥0 Check
492960 Nylon Housing 3 mm Double Bit 18.5
¥0 Check
492959 Nylon Housing 3 mm Double Bit 14.5
¥0 Check
492958 Nylon Housing 3 mm Double Bit 8.5
¥0 Check
491454 Chrome Plated 7 mm Triangle 28.5
¥0 Check
491453 Chrome Plated 7 mm Triangle 26.5
¥0 Check
491452 Chrome Plated 7 mm Triangle 24.5
¥0 Check
491451 Chrome Plated 7 mm Triangle 18.5
¥0 Check
491450 Chrome Plated 7 mm Triangle 14.5
¥0 Check
491449 Chrome Plated 7 mm Triangle 8.5
¥0 Check
468452 Black Powder Coated Slotted 28.5
¥0 Check
468451 Black Powder Coated Slotted 26.5
¥0 Check
468450 Black Powder Coated Slotted 24.5
¥0 Check
468449 Black Powder Coated Slotted 18.5
¥0 Check
468448 Black Powder Coated Slotted 14.5
¥0 Check
468447 Black Powder Coated Slotted 8.5
¥0 Check
468446 Black Powder Coated 8 mm Triangle 28.5
¥0 Check
468445 Black Powder Coated 8 mm Triangle 26.5
¥0 Check
468444 Black Powder Coated 8 mm Triangle 24.5
¥0 Check
468443 Black Powder Coated 8 mm Triangle 18.5
¥0 Check
468442 Black Powder Coated 8 mm Triangle 14.5
¥0 Check
468441 Black Powder Coated 8 mm Triangle 8.5
¥0 Check
468440 Black Powder Coated 8 mm Square 28.5
¥0 Check
468439 Black Powder Coated 8 mm Square 26.5
¥0 Check
468438 Black Powder Coated 8 mm Square 24.5
¥0 Check
468437 Black Powder Coated 8 mm Square 18.5
¥0 Check
468436 Black Powder Coated 8 mm Square 14.5
¥0 Check
468435 Black Powder Coated 8 mm Square 8.5
¥0 Check
468434 Black Powder Coated 5 mm Double Bit 28.5
¥0 Check
468433 Black Powder Coated 5 mm Double Bit 26.5
¥0 Check
468432 Black Powder Coated 5 mm Double Bit 24.5
¥0 Check
468431 Black Powder Coated 5 mm Double Bit 18.5
¥0 Check
468430 Black Powder Coated 5 mm Double Bit 14.5
¥0 Check
468429 Black Powder Coated 5 mm Double Bit 8.5
¥0 Check
468428 Black Powder Coated 3 mm Double Bit 28.5
¥0 Check
468427 Black Powder Coated 3 mm Double Bit 26.5
¥0 Check
468426 Black Powder Coated 3 mm Double Bit 24.5
¥0 Check
468425 Black Powder Coated 3 mm Double Bit 18.5
¥0 Check
468424 Black Powder Coated 3 mm Double Bit 14.5
¥0 Check
468423 Black Powder Coated 3 mm Double Bit 8.5
¥0 Check
468422 Chrome Plated Slotted 28.5
¥0 Check
468421 Chrome Plated Slotted 26.5
¥0 Check
468420 Chrome Plated Slotted 24.5
¥0 Check
468419 Chrome Plated Slotted 18.5
¥0 Check
468418 Chrome Plated Slotted 14.5
¥0 Check
468417 Chrome Plated Slotted 8.5
¥0 Check
468416 Chrome Plated 8 mm Triangle 28.5
¥0 Check
468415 Chrome Plated 8 mm Triangle 26.5
¥0 Check
468414 Chrome Plated 8 mm Triangle 24.5
¥0 Check
468413 Chrome Plated 8 mm Triangle 18.5
¥0 Check
468412 Chrome Plated 8 mm Triangle 14.5
¥0 Check
468411 Chrome Plated 8 mm Triangle 8.5
¥0 Check
468410 Chrome Plated 8 mm Square 28.5
¥0 Check
468409 Chrome Plated 8 mm Square 26.5
¥0 Check
468408 Chrome Plated 8 mm Square 24.5
¥0 Check
468407 Chrome Plated 8 mm Square 18.5
¥0 Check
468406 Chrome Plated 8 mm Square 14.5
¥0 Check
468405 Chrome Plated 8 mm Square 8.5
¥0 Check
468404 Chrome Plated 5 mm Double Bit 28.5
¥0 Check
468403 Chrome Plated 5 mm Double Bit 26.5
¥0 Check
468402 Chrome Plated 5 mm Double Bit 24.5
¥0 Check
468401 Chrome Plated 5 mm Double Bit 18.5
¥0 Check
468400 Chrome Plated 5 mm Double Bit 14.5
¥0 Check
468399 Chrome Plated 5 mm Double Bit 8.5
¥0 Check
468398 Chrome Plated 3 mm Double Bit 28.5
¥0 Check
468397 Chrome Plated 3 mm Double Bit 26.5
¥0 Check
468396 Chrome Plated 3 mm Double Bit 24.5
¥0 Check
468395 Chrome Plated 3 mm Double Bit 18.5
¥0 Check
468394 Chrome Plated 3 mm Double Bit 14.5
¥0 Check
468393 Chrome Plated 3 mm Double Bit 8.5
¥0 Check
